ERIKC 0445120191 bosch repair kit F 00R J03 498 ( F00RJ03498 ) Common rail nozzle DLLA150P2143 fitting kit F00R J03 498

ERIKC 0445120191 bosch repair kit F 00R J03 498 ( F00RJ03498 ) Common rail nozzle DLLA150P2143 fitting kit F00R J03 498

Repair Kit description

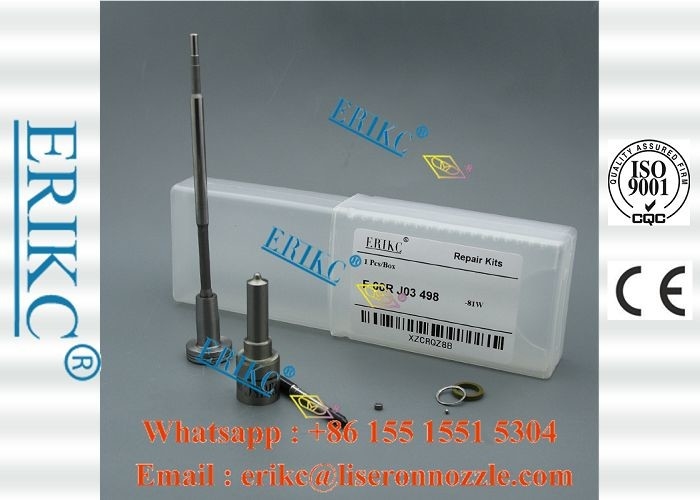

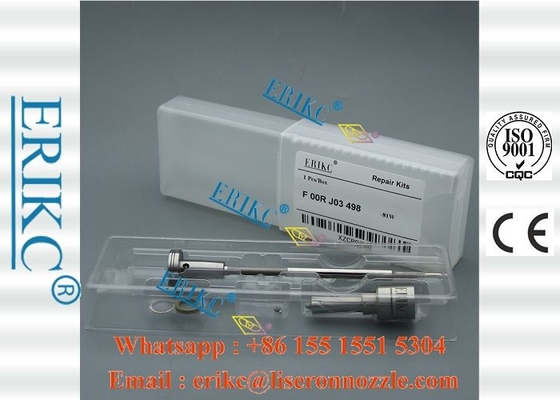

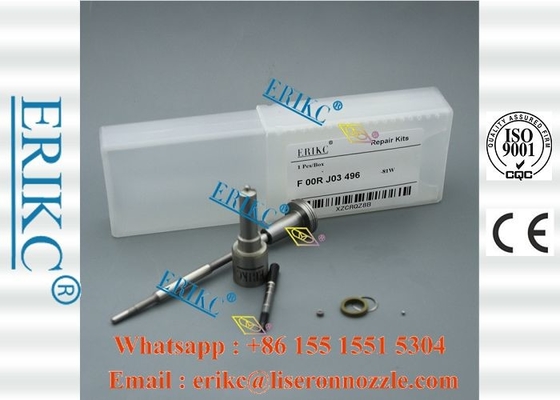

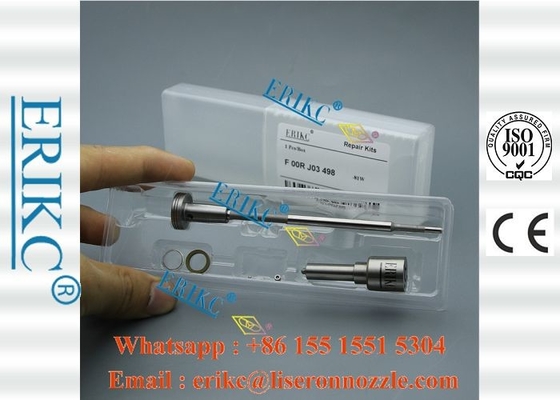

Repair Kit Picture

Injector Repair Kit list

ERIKC hot product

Mainly producing and selling CR injectors, nozzles, control valves, valve bonnets, CRIN repair kits, injector adjusting shims, common rail injector testers and repair tools. Besides our own brand "HAOTENG" and "DYD", we are also the sole agent of UK ERIKC (the former OEM factory of famous international brand common rail Parts).
​

Injector FAQ

FAQ:clogged fuel injector

ERIKC Answer:A more effective method is looking at the voltage changes from the O2 sensor. Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off. If an injector is good, the voltage from the O2 sensor will drop to or below 100mV. If the problem is a closed or dead injector, the long-term fuel trim may have compensated enough so that the voltage doesn’t change.

Another effective test is to measure the pressure loss in the fuel rail when each injector is fired and pulses for a set period of time. Use an electronic injector pulse tester for this. As each injector is energized, a fuel pressure gauge is observed to monitor the drop in fuel pressure. The electrical connectors to the other injectors are removed, isolating the injector being tested. The difference between the maximum and minimum reading is the pressure drop.

Ideally, each injector should drop the same amount when opened. A variation of 1.5 to 2 psi or more is cause for concern. No pressure drop, or a very low pressure drop, is a sign the orifice or tip is restricted. A higher than normal pressure drop indicates a rich condition that could be caused by a stuck plunger or worn pintle.

FAQ: Misfire Codes

ERIKC Answer:A lean misfire may trigger a misfire code and turn on the check engine light. The code often will be a P0300 random misfire code, or you may find one or more misfire codes for individual cylinders, depending on which injectors are most affected.
