ERIKC 1211 denso fuel tank injection valves rods 095000-1211 auto engine parts control valve 6156113300
FOR Injector
095000-1211 095000-1210
095000-1212 095000-1213 6156-11-3300
6156113300

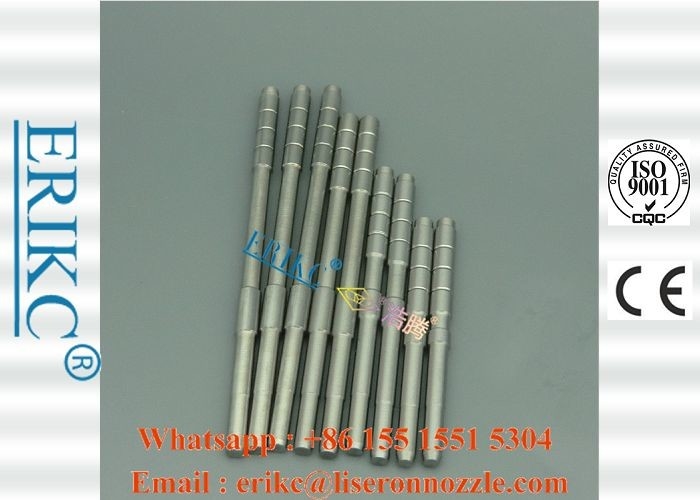

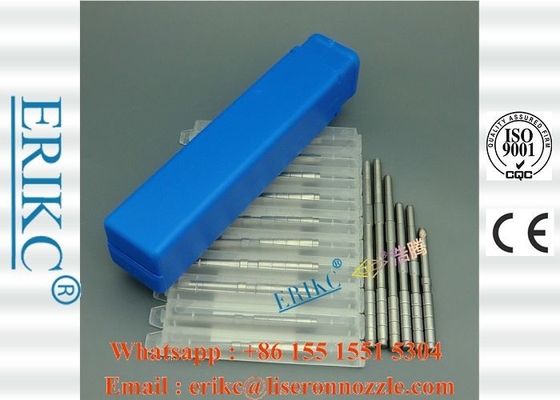

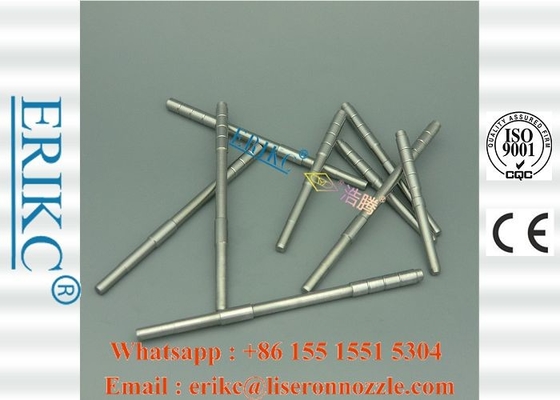

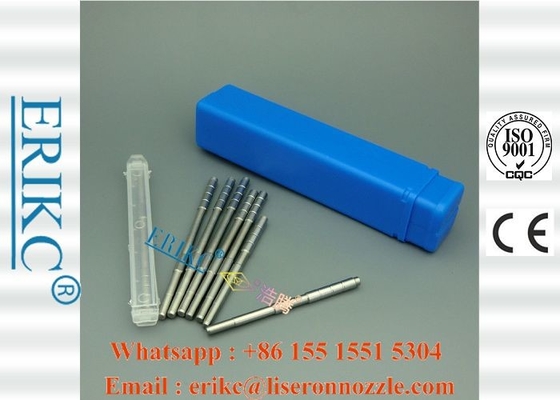

Valve Picture
Other Denso Valve Rod List
| 5004 |
095000-500# |
095000-501# |
095000-534# |
| 095000-890# |
095000-637# |
095000-636# |
| 095000-066# |
095000-536# |
095000-809# |
| 095000-547# |
095000-550# |
|
| 6592 |
095000-635# |
095000-659# |
095000-658# |
| 5215 |
095000-521# |
095000-542# |
095000-758# |
| 095000-689# |
095000-512# |
095000-755# |
| 095000-717# |
095000-722# |
095000-663# |
| 6222 |
095000-622# |
095000-549# |
095000-669# |
| 6700 |
095000-670# |
095000-801# |
|
| 5511 |
095000-551# |
095000-415# |
|
| 5226 |
095000-522# |
|
|
| 6790 |
095000-679# |
|
|
| 1654 |
095000-165# |
095000-545# |
|
| 7100 |
095000-710# |
|
|
| 6845 |
095000-684# |
095000-631# |
|
| 5635 |
095000-563# |
|
|
| 0541 |
095000-054# |
|
|
| 7210 |
095000-721# |
095000-555# |
|
| 5230 |
095000-523# |
095000-519# |
|
| 6471 |
095000-647# |
095000-505# |
095000-548# |
| 095000-649# |
095000-650# |
095000-646# |
| 5525 |
095000-552# |
095000-703# |
095000-676# |
| 095000-829# |
095000778# |
095000-592# |
| 095000-754# |
G3S6 |
G3S33 |
| 5801 |
095000-580# |
095000-565# |
095000-624# |
| 095000-625# |
|
|
| 8100 |
095000-810# |
|
|
| 5600 |
095000-560# |
|
|
| 6070 |
095000-607# |
|
|
| 6120 |
095000-612# |
|
|
| 1211 |
095000-121# |
|
|
| 6980 |
095000-698# |
|
|
| 5870 |
095000-587# |
|
|
| 0812 |
095000-081# |
|
|
ERIKC hot product
Mainly producing and selling CR injectors, nozzles, control valves, valve bonnets, CRIN repair kits, injector adjusting shims, common rail injector testers and repair tools. Besides our own brand "HAOTENG" and "DYD", we are also the sole agent of UK ERIKC (the former OEM factory of famous international brand common rail Parts).
Product FAQ
FAQ: What is an Injector’s Static Flow rate?
ERIKC Answer: Manufacturers rate fuel injectors by the maximum amount of fuel that they can flow in a given amount of time at a given pressure. This measurement is known as Static Flow Rate and is normally taken at 100% duty cycle and a fuel pressure of 43.5 PSI.
Example: At 100% duty cycle a 55 pound (lb) injector at 43.5 PSI of fuel pressure will flow 55 pounds per hour.
Injector Flow Rates are expressed in pounds per hour (lb/hr) or cubic centimeter per minute (cc/min). Given the same pressure 1 lb/hr = 10.5 cc/min.
To convert lb/ hr to cc/min, multiply by 10.5
Sometimes injector flow rates are expressed in milliliter per minute (ml/min)
1 ml = 1 cc
Example: a 220 cc injector = 220 ml injector
FAQ: Most injectors fall into two categories: High or Low Impedance
ERIKC Answer: High Impedance.
These have a typical coil resistance of 12 – 16 ohms and are the most commonly used. Drive circuitry for this type of injector is simple and sometimes referred to as a saturated driver circuit.
Low Impedance.
Low Impedance Injectors has normally a coil resistance of 4 ohms or less and is typically found in larger sized or high performance injectors. Driver circuitry for these types is called a Peak - Hold type and is more complex and costs more than the saturated type.
